We offer carton sealers with top & bottom drive. The machines have top & bottom tape head for high level of functional accuracy. The tape tension, crank handle, leg height etc., are easily adjustable. The roller working table, optional and programmable heads, optional controller and electronic controls enhance the functional efficiency and maneuverability of the machine. Ideal for sealing and packing of cartons these are widely used in electrical appliance, foodstuffs, general merchandise and medicine and in several other industries industry.

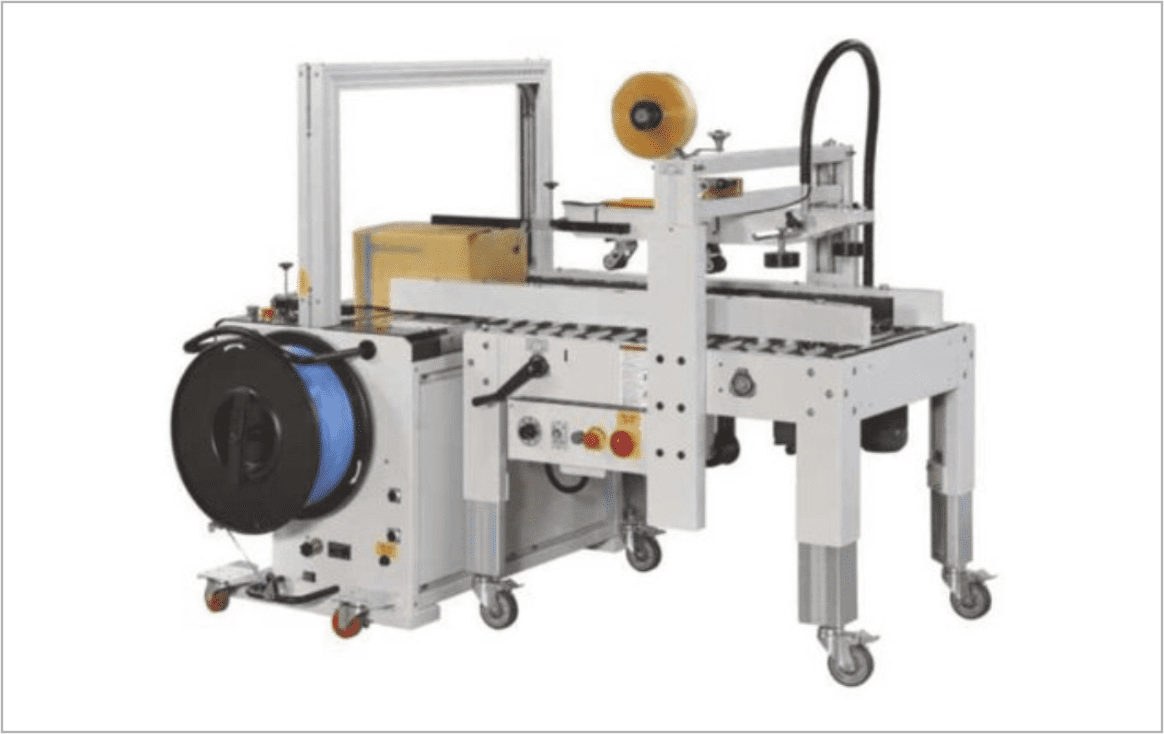

SVP 102 PLS Automatic Packing Line consists of semiautomatic carton sealer, high-table automatic strapping machine and conveying rack. The carton sealer and strapping machine can also be used separately as single unit.
• Small size, takes up less space.
• Can reduce the packing cost.
• Easy to operate and service.
SVP 102 PLS Automatic Packing Line has the function of continuous auto carton sealing and multi-passes strapping.
| Model | SVP 102 PLS (Auto Packing Line) |
|---|---|
| Voltage (V/Hz) | AC 220/50 |
| Gross Power (W) | 1100 |
| Max. Carton Size (L x W x H) (mm) | 600 x 500 x 500 |
| Min. Carton Size (L x W x H) (mm) | 180 x 300 x 130 |
| Speed (m/min) | 16 |
| Productive Capacity (pcs/h) | 600 |
| Height of Table (mm) | 830 |
| Adhesive Tape (mm) | BOPP, PVC Adhesive tape, width 60,76mm |
| Available Strapping Belt (mm) | Plastic Strapping Belt, Width : 9~15, Thickness : 0.5~1.1 |
| Air Compressor (optional) | 2/3 Litres at 5 Bars |
| External Dimensions (L x W x H) (mm) | 6650 x 1420 x 1565 |
| Net Weight (kg) | 385 |
