Vacuum Packaging Machine

Vacuum Packaging Machine

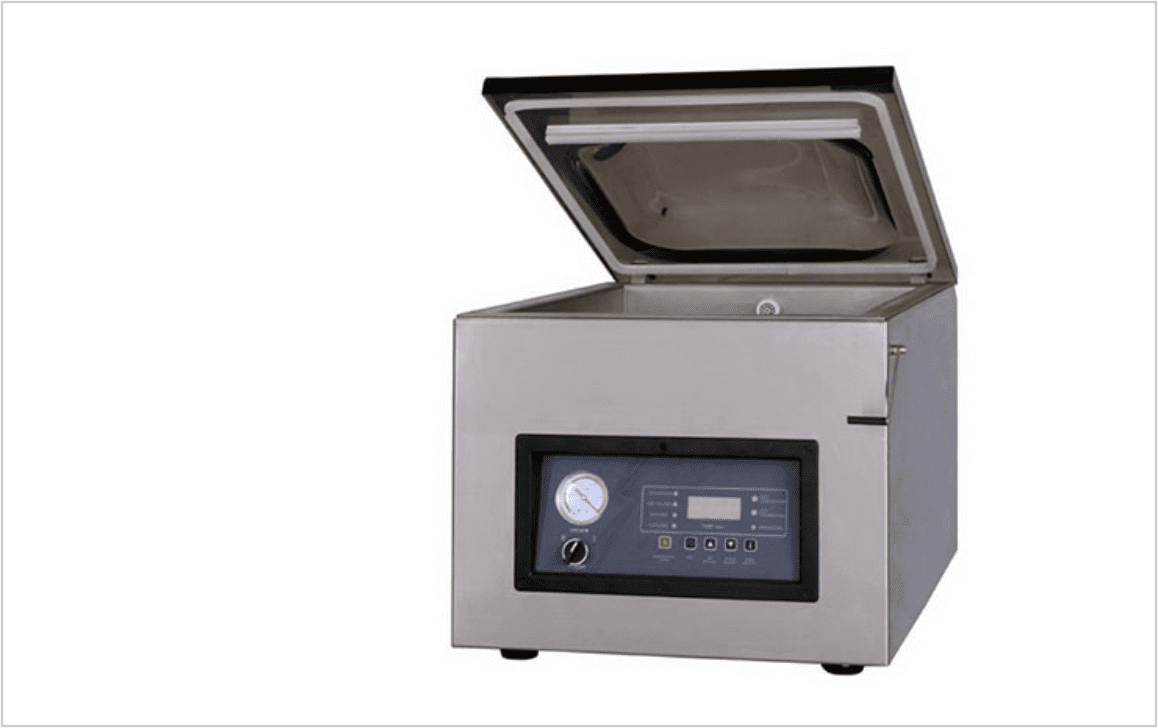

The products after packing can be prevented from oxidation, going mould, insects or getting damp, thus can be kept fresh for long storage. Table style vacuum packing machine is compact in structure, easy to operate, can apply in space limited working place. The machine is deep in chamber size, which facilitates packing big products. Transparent organic glass lid enables users to well monitor the whole work process.

The vacuum chamber could be added with PP insert plate for products with different heights to improve the vacuum efficiency.

Note: if the function of gas flushing is required, the machine model is DZQ/T series whose technical parameter is similar to DZ /T series.

Parameters:

Model No. DZ-400/T
Voltage (V/Hz) AC 380/50 220/50 110/60
Motor power (W) 900
Sealing Power (W) 500
Ultimate Vacuum Pressure (Kpa) 1
Sealing Width (mm) 10
Chamber Dimension (L × W × H) (mm) 406 × 456 × 190
Vacuum Pump capacity (m3/h) 20
Material for Vacuum Chamber SUS304
External Dimensions (L × W × H) (mm) 486 × 570 × 504
Net Weight (Kg) Approx.80
